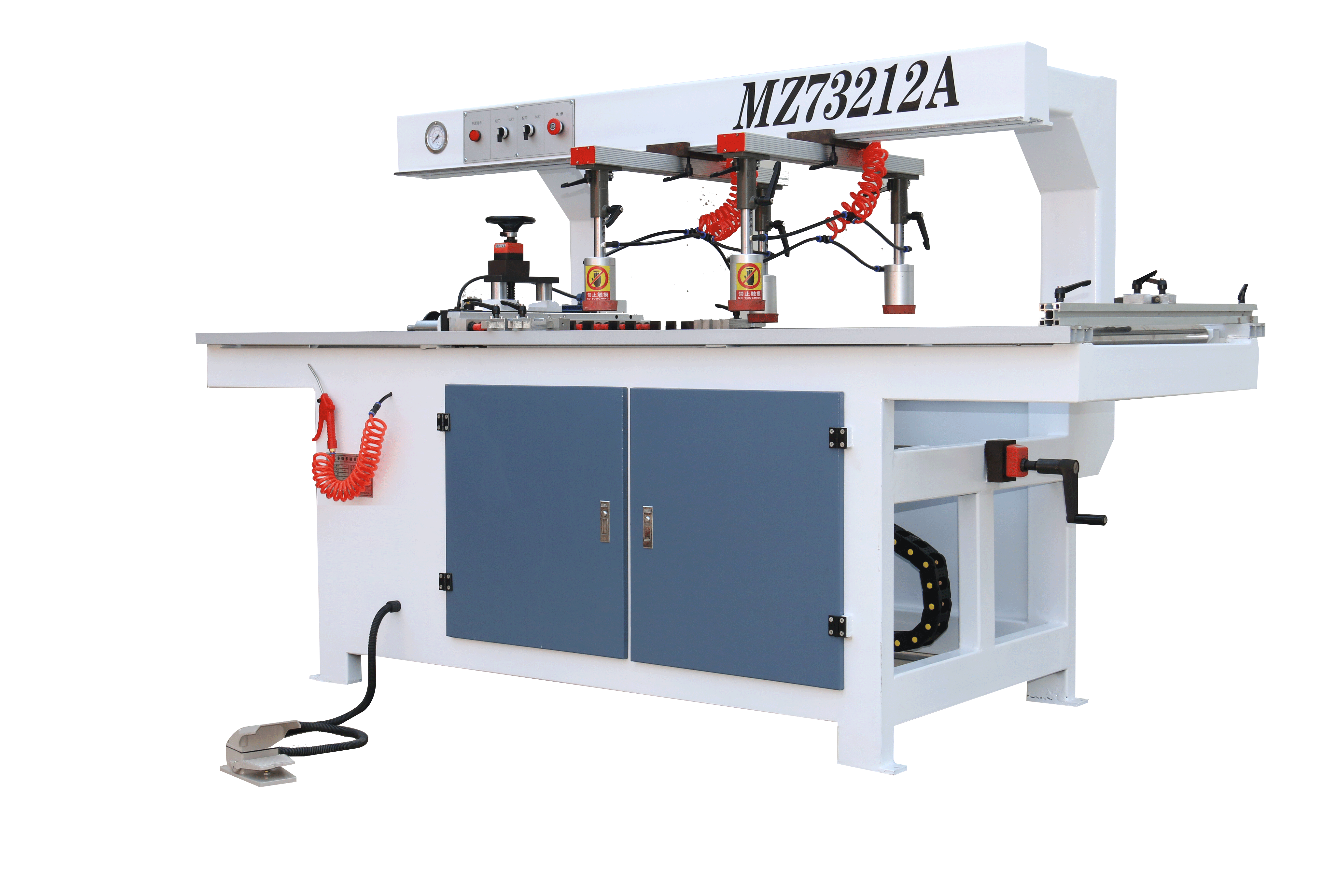

| MZ73212雙排多軸木工鉆床Mz73212 double row multi axis woodworking drilling machine | |
| 技術指標 Technical index | Mz73212 |
| 鉆孔直徑 Borehole diameter | 35mm |
| 鉆孔深度 Drilling depth | 60mm |
| 垂直鉆加工孔距 Vertical drilling hole spacing | 285-1220mm |
| 鉆軸數 Number of drill shafts | 21軸*2排 |
| 轉速 speed | 2840r/min |
| 電機功率 Motor power | 1.5kw*2 |
| 適應氣壓 Adapt to air pressure | 0.6-0.8MPa |
| 外形尺寸 Dimensions | 2400*1080*1400mm |
